up to 420 Tests/hr Chemical Chemistry; up to 600 Tests/h with I.S.E.

Direct potentiometry Serum and diluted Urine

NUMBER OF REAGENT

40+40 Total

REFRIGERATED REAGENT BAY

Yes

REACTION VOLUME

from 180 to 400 µl

READING CUVETTES

84 non-disposable optical glass

SAMPLING ARMS

1 for Serum, 2 for Reagents

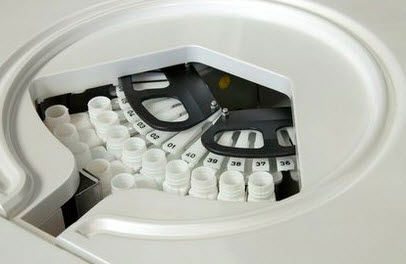

SAMPLES TRAY

4 Sectors of 25 Samples each

STD & CONTROLS TRAY

26 Calibrator & Controls positions, Refrigerated

TEST MODES

Sequential Access, Batch, STAT

TEST DIRECTORY

Up to 500 + Relation Test

CUVETTE TEMP.

Dry Control OFF/37°C (± 0,2°C)

VACUUM PUMP

On board Vacuum System

PHOTOMETER

Solid State, up to 14 Channel 348-800 nm

ABSORBANCE RANGE

0 - 3 Abs

PHOTOMETER SENSITIVITY

DILUTER

1 x 220 µl, 2 x 470 µl (Long Life Ceramic)

DILUTER PRECISION

± 0,1%

DILUTER RESOLUTION

± 0,1 µl for serum ; ± 1 µl for reagents

BAR CODE

Internal for reagents & sample

CLOT SENSOR

Yes

CRASH SENSOR

Yes

COMPUTER

External PC

PERIPHERALS

Inkjet Printer & UPS

INTERFACE

USB - RS232 Bidirectional + TCP/IP

QC PROGRAM

3 Known Levels, 3 Unknown Levels

MAINTENANCE

Software Assisted

POWER SUPPLY

Universal input 100/240 Volt, 50-60 Hz, 400 Watt, PFC

U.P.S.

I500 Watt

DIMENSION

I27 cm (W) - 77 (D) - I 19 cm (H)

WEIGHT

I62 Kg

OPERATIVE SYSTEM:
COMPUTER:
PROCESSOR:

Windows® 7/8 Professional
IBM compatible
Intel® Pentium Dual core duo

RAM:

2 GB

VIDEO:

SVGA or compatible, 32K colors

DISPLAY:

Color resolution: 1366x768

MOUSE:

Serial, PS2, USB

HOST COMMUNICATION:

RS232, TCP/IP

USB:

I, version 2.0

PRINTER:

External Inkjet or Laser

CD ROM:

DVD or CD
